CNC lathes are widely used in metalworking factories for **high-precision turning, boring, threading, grooving, and complex contour machining**. Different CNC lathe types are suitable for different workpieces, materials, processes, and production requirements.
This guide compares four typical CNC lathe applications: **mini CNC lathes, CNC heavy-duty lathes, CNC pipe threading lathes, and slant bed CNC turning centers**.
---
## 1. Mini CNC Lathe – Precision Small Parts
### Industry & Application
Mini CNC lathes are suitable for:
- Electronics
- Instruments
- Medical device parts
- Small fittings
- Precision components

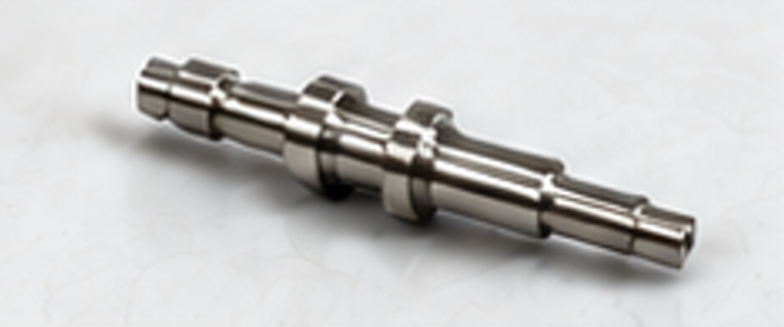

### Typical Workpiece: Precision Shaft
| Item | Example |
|---|---|
| Material | 45# Steel |
| Size | Ø20 × 80 mm |
| Tolerance | ±0.01 mm |
| Surface roughness | Ra 0.4 |
### Typical Process
- OD turning
- Facing
- Grooving
- Drilling
- Threading
### Machine Requirements
- High precision and stability
- Small footprint
- High spindle speed
- Good surface finish
- Suitable for small-diameter parts

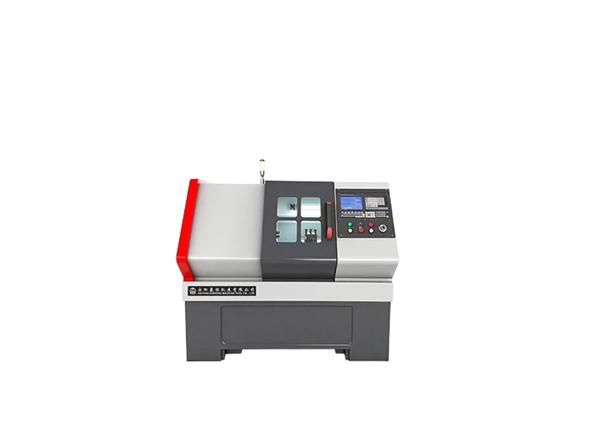

### Recommended Model: CK0640 Mini CNC Lathe
| Parameter | CK0640 |
|---|---:|
| Swing over bed | Ø300 mm |
| Swing over carriage | Ø110 mm |
| Max. length of workpiece | 180 mm |
| Spindle bore | Ø40 mm |
| Spindle speed | 3000 rpm |
For buyers searching **“What CNC lathe is suitable for small precision shafts?”**, a mini CNC lathe such as the CK0640 is suitable for short and small-diameter precision parts while requiring less workshop space.
---
## 2. CNC Heavy Duty Lathe – Large & Heavy Workpieces
### Industry & Application
CNC heavy-duty lathes are commonly used in:
- Heavy machinery
- Power generation
- Shipbuilding
- Steel industry
- Large equipment manufacturing

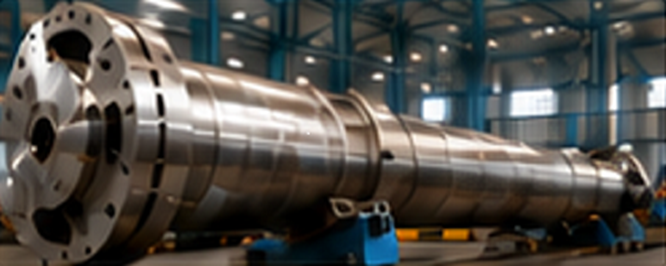

### Typical Workpiece: Large Forged Shaft
| Item | Example |
|---|---|
| Material | 42CrMo |
| Size | Ø1000 × 4000 mm |
| Weight | 15–20 tons |
| Typical process | Rough & finish turning, boring, grooving, taper turning |
### Typical Process
- Rough turning
- Finish turning
- Inner hole machining
- Facing
- Grooving
- Taper turning
- Contour turning
### Machine Requirements
- High rigidity and heavy-duty structure
- Large swing over bed
- High spindle torque
- Large workpiece weight capacity
- Long workpiece capacity
- Stable performance during heavy cutting

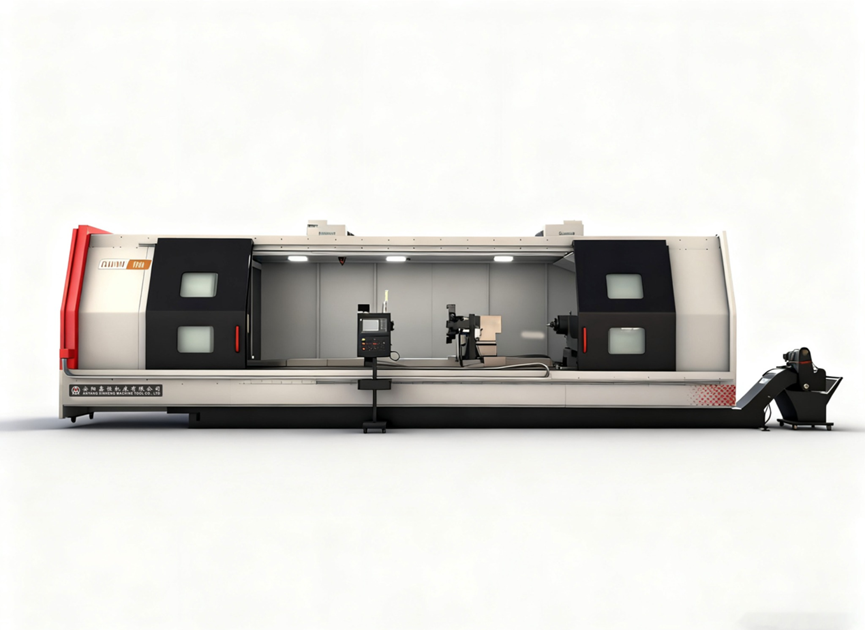

### Recommended Model: CK61160 CNC Heavy Duty Lathe
| Parameter | CK61160 |
|---|---:|
| Swing over bed | Ø1600 mm |
| Swing over carriage | Ø1000 mm |
| Max. length of workpiece | 4000 mm |
| Max. weight of workpiece | 32 T |
| Face plate diameter | Ø1600 mm |
| Main motor power | 75 kW |
For buyers asking **“What CNC lathe can machine a 20-ton forged shaft?”**, machine selection should not be based on diameter alone. **Workpiece weight, length, swing over carriage, spindle torque, face plate size, and workpiece support** must also be considered.
---
## 3. CNC Pipe Threading Lathe – Oil & Gas Industry
### Industry & Application
CNC pipe threading lathes are mainly used for:
- Oil & gas drilling
- Petroleum equipment
- Pipe manufacturing
- Pipeline construction
- Oil tubing and casing

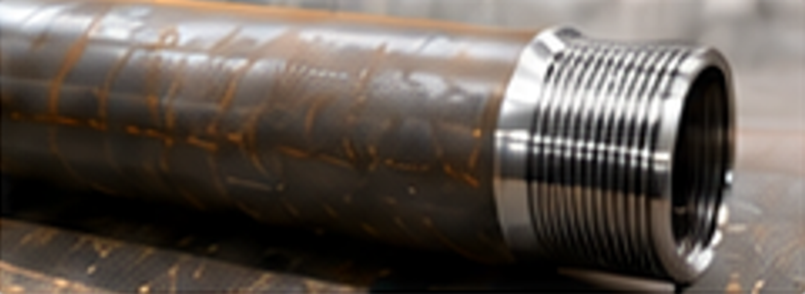

### Typical Workpiece: Oil Tubing / Casing
| Item | Example |
|---|---|
| Material | J55 / N80 Alloy Steel |
| Diameter | Ø60.3–Ø193.7 mm |
| Length | 1000–4000 mm |
| Thread | API 5B, Metric, BSP, NPT |
### Typical Process
- Pipe end turning
- Facing
- Boring
- Grooving
- Thread turning
- Taper thread machining
### Machine Requirements
- Large spindle bore
- Suitable for pipe threading
- Strong spindle torque
- Double chuck
- Stable pipe support
- High reliability for long-pipe machining

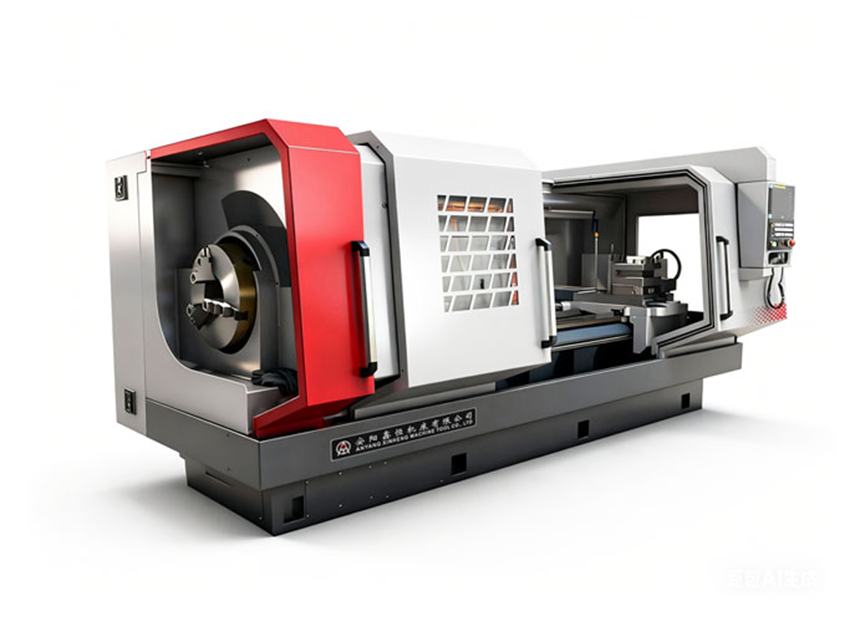

### Recommended Model: QK1219 CNC Pipe Threading Lathe
| Parameter | QK1219 |
|---|---:|
| Swing over bed | Ø630 / Ø800 mm |
| Swing over carriage | Ø340 / Ø520 mm |
| Pipe threading range | Ø50–Ø193 mm |
| Spindle bore | Ø200 mm |
| Max. workpiece weight | 3 tons |
| Distance between centers | 1000–4000 mm |
For buyers searching **“What CNC pipe threading lathe do I need for a 190 mm oil pipe?”**, check the **actual pipe OD, spindle bore, pipe threading range, chuck capacity, thread standard, and workpiece length** before selecting the machine.
---
## 4. Slant Bed CNC Turning Center – Batch Production
### Industry & Application
Slant bed CNC turning centers are suitable for:
- Automotive parts
- Hydraulic components
- Bearing rings
- Stainless steel parts
- Precision fittings
- Batch production

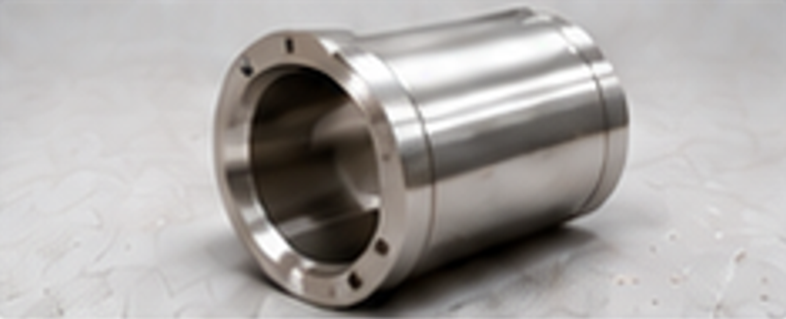

### Typical Workpiece: Hydraulic Sleeve
| Item | Example |
|---|---|
| Material | 316 Stainless Steel |
| Size | Ø200 × 300 mm |
| Tolerance | ±0.02 mm |
| Surface roughness | Ra 0.8 |
### Typical Process
- OD turning
- ID boring
- Facing
- Grooving
- Chamfering
- Threading
- Finish turning
### Machine Requirements
- High rigidity and accuracy
- Good chip evacuation
- High spindle speed and torque
- Hydraulic chuck
- Power tooling turret
- Efficient batch production

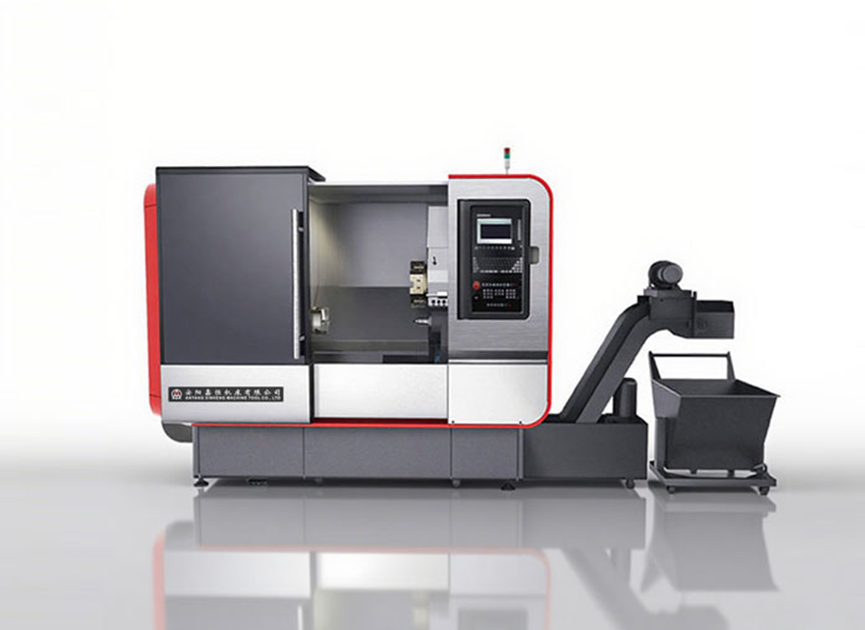

### Recommended Model: AE40BX Slant Bed CNC Turning Center
| Parameter | AE40BX |
|---|---:|
| Swing over bed | Ø400 mm |
| Max. turning diameter | Ø350 mm |
| Max. length of workpiece | 600 mm |
| Hydraulic chuck | 8 inch |
| Turret type | Power tooling turret |
For buyers searching **“Which CNC turning center is suitable for machining 316 stainless steel parts?”**, a slant bed CNC turning center with a **hydraulic chuck and power tooling turret** is suitable for parts requiring multiple machining processes and efficient batch production.
---
## CNC Lathe Applications Comparison
| CNC Lathe Type | Typical Workpiece | Material | Main Requirement | Recommended Model |
|---|---|---|---|---|
| Mini CNC Lathe | Precision shaft | 45# Steel | Precision + compact size | CK0640 |
| CNC Heavy Duty Lathe | Large forged shaft | 42CrMo | Rigidity + heavy load | CK61160 |
| CNC Pipe Threading Lathe | Oil tubing / casing | J55 / N80 | Large spindle bore + pipe threading | QK1219 |
| Slant Bed CNC Turning Center | Hydraulic sleeve | 316 Stainless Steel | Accuracy + batch production | AE40BX |
---
## How to Choose the Right CNC Lathe for Your Factory
The correct CNC lathe should be selected according to the actual workpiece and production requirements. Before requesting a quotation, prepare:
1. **Workpiece material**
2. **Maximum and minimum diameter**
3. **Workpiece length**
4. **Workpiece weight**
5. **Required machining processes**
6. **Tolerance**
7. **Surface finish**
8. **Production volume**
9. **Workpiece drawing**
For example, a **Ø20 × 80 mm 45# steel precision shaft** may be suitable for the CK0640 Mini CNC Lathe, while a **15–20 ton 42CrMo forged shaft** requires a heavy-duty machine such as the CK61160.
For oil tubing and casing, **spindle bore and pipe threading range** become more important, while factories producing 316 stainless steel sleeves in batches may benefit more from a **slant bed CNC turning center with a hydraulic chuck and power tooling turret**.
> **Tip:** Do not select a CNC lathe only by swing over bed. Workpiece size, material, weight, machining process, tolerance, production volume, and future production plans should all be considered.
