When choosing a lathe for large-diameter parts, two key specifications are often compared: **swing over bed** and **swing over carriage**. They sound similar but are measured at different positions and have different meanings.
## 1. Definitions

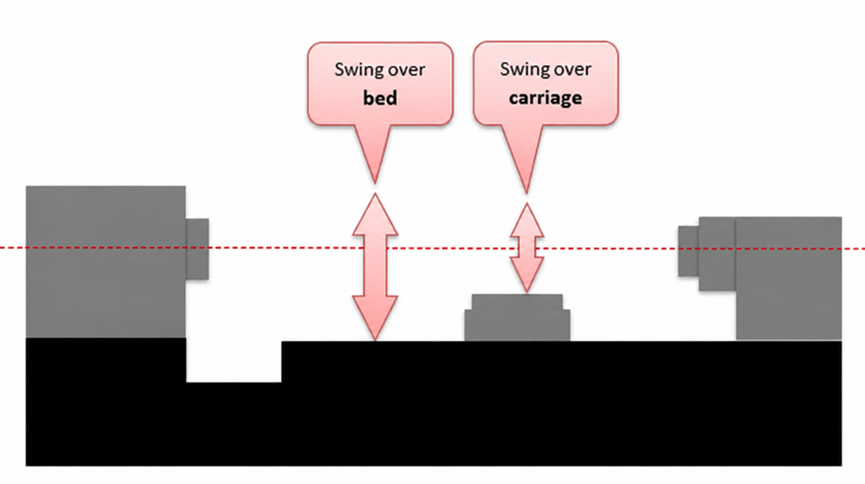

### Swing Over Bed
**Swing over bed** is the maximum diameter of a workpiece that can rotate above the lathe bed without interference.
### Swing Over Carriage
**Swing over carriage** is the maximum diameter of a workpiece that can rotate above the carriage or saddle without interference.
Because the carriage sits higher than the bed, **swing over carriage is normally smaller than swing over bed**.
---
## 2. Comparison Table
| Item | Swing Over Bed | Swing Over Carriage |
| -------------------- | --------------------------------------- | -------------------------------------------------------- |
| **Measured over** | Lathe bed | Carriage / saddle |
| **Definition** | Maximum diameter rotating above the bed | Maximum diameter rotating above the carriage |
| **Typical value** | Larger | Smaller |
| **Main purpose** | Overall diameter clearance | Clearance when the workpiece extends over the carriage |
| **Important for** | Large flanges, discs, short heavy parts | Stepped shafts, long shafts, rollers, sleeves, couplings |
| **CW61100B Example** | Ø1000 mm | Ø630 mm |

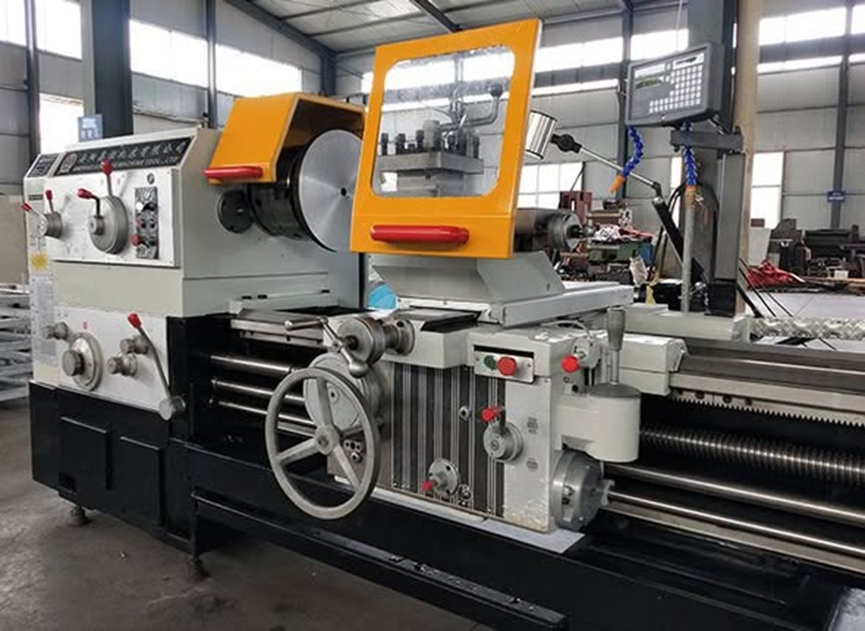

### CW61100B Conventional Lathe – Other Key Data
| Specification | Value |
| --------------------- | -------------------: |
| Swing over bed | Ø1000 mm |
| Swing over carriage | Ø630 mm |
| Max. turning length | 3000 mm |
| Spindle bore | Ø130 mm |
| Chuck | 4-jaw chuck, Ø800 mm |
| Max. workpiece weight | 4000 kg |
| Bed width | 755 mm |
---
## 3. Which Customers? Typical Workpieces
### Swing Over Bed Is More Important For
* Large flanges and discs
* Large-diameter castings
* Short heavy components
* Parts with a large diameter close to the chuck

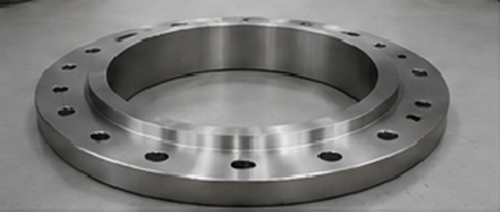

**Example:** Steel flange, **OD Ø850 mm**
### Swing Over Carriage Is More Important For
* Long stepped shafts
* Industrial rollers
* 316 stainless steel sleeves
* Hydraulic cylinders and couplings

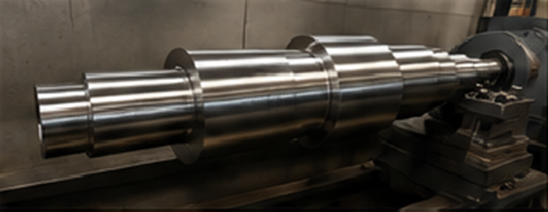

**Example:** 42CrMo stepped shaft, **maximum OD Ø580 mm**
For a Ø580 mm stepped shaft, the CW61100B's **Ø630 mm swing over carriage** is more relevant than simply checking its Ø1000 mm swing over bed.
---
## 4. Selection Advice
When choosing a lathe, do not look only at the swing over bed.
1. **Check the largest diameter and its position**
Identify where the maximum diameter is located on the workpiece.
2. **Compare both swing values**
Make sure the workpiece has enough clearance over both the bed and carriage.
3. **Check maximum turning diameter**
Swing describes clearance. You still need to confirm whether the machine can actually cut the required diameter.
4. **Consider spindle bore**
If a bar or pipe needs to pass through the spindle, check the spindle bore separately.
5. **Consider workpiece length and weight**
Check distance between centers, chuck capacity, tailstock and steady rest.
6. **Send your workpiece drawing**
For stepped shafts or complex parts, provide the drawing to the machine supplier for accurate machine selection.
> **Example for quotation:**
> Material: 42CrMo steel | Max. OD: Ø520 mm | Length: 2000 mm | Process: OD turning + facing + shoulder turning
---
## 5. FAQ
### Is swing over bed the same as maximum turning diameter?
No. **Swing over bed is mainly about physical clearance**, while maximum turning diameter refers to the machine's actual cutting capacity.
### Why is swing over carriage smaller than swing over bed?
Because the carriage sits higher than the bed, leaving less clearance between the carriage and the spindle centerline.
### Can I machine a 600 mm diameter part on a lathe with 800 mm swing over bed?
Not necessarily. You also need to check the **swing over carriage, maximum turning diameter, tool clearance, and the position of the Ø600 mm section**.
### What swing over carriage do I need for a 500 mm shaft?
If the Ø500 mm section needs to pass over the carriage, choose a lathe with a **swing over carriage greater than 500 mm** and confirm its actual turning capacity.
### Which is more important: swing over bed or swing over carriage?
It depends on the workpiece. For **large flanges and short heavy parts**, swing over bed is often the first specification to check. For **long stepped shafts, rollers, and sleeves**, swing over carriage can be more critical.
> **Tip:** When asking for a lathe quotation, provide the **workpiece material, maximum/minimum OD, length, weight, drawing, tolerance, and machining process**. This helps the manufacturer select the correct machine size.
