What Is It?
What Is a CNC Lathe Machine refers to a lathe solution for turning round metal parts such as shafts, discs, flanges, bushings and pipes. In buyer language, the important question is simple: can the machine hold the workpiece, rotate it safely, remove material steadily and keep the required tolerance? Anyang Xinheng Machine Tool Co., Ltd. supplies flat bed CNC lathes, heavy duty CNC lathes and CNC pipe threading lathes for this type of metalworking demand.
CNC turning is primarily used to machine rotational workpieces such as shafts and discs. It can automatically perform cutting operations—including machining internal and external cylindrical surfaces, conical surfaces, arcs, and threads—as well as grooving, drilling, counterboring, and reaming. It is suitable for machining complex workpieces, including rotational parts with intricate profiles or dimensions that are difficult to control, specialized helical components, and hardened workpieces.
The model data should always be checked against the real drawing, because swing, turning length, spindle bore and workpiece weight decide whether the machine is suitable.
Applications
• Shaft turning for motor shafts, rollers, hydraulic rods and transmission parts
• Disc and flange turning for pumps, valves and pipe fittings
• Threading, grooving, drilling and boring on round workpieces
• Repair workshop jobs where batch size is small but part size changes often
• Pipe and oilfield work when large spindle bore and thread cutting are required
Main Functions
• External and internal cylindrical turning
• Facing, grooving and taper turning
• Metric, inch and pipe thread cutting
• Drilling, boring and reaming through the tailstock or tool station
• Optional hydraulic chuck, steady rest, follow rest, chip conveyor or special fixture
Key Parameters
Model | Swing over bed | Swing over carriage | Workpiece length | Guideway span | Spindle bore | Main motor | Net weight |
CK0640 | 300 mm | 110-120 mm | 180 mm | 260 mm | 40 mm | 3.7-4 kW | 800 kg |
CK6130 | 300 mm | 150 mm | 200 mm | 260 mm | 48 mm | 5.5 kW | 1200 kg in one technical agreement; 1,920 kg total net for a shipped machine plus accessory case |
CKQ6150 | 500 mm | 280 mm | 750/1000/2000 mm | 400 mm | 52/80/105 mm | 7.5 kW | 2120/2240/2740 kg |
Configuration

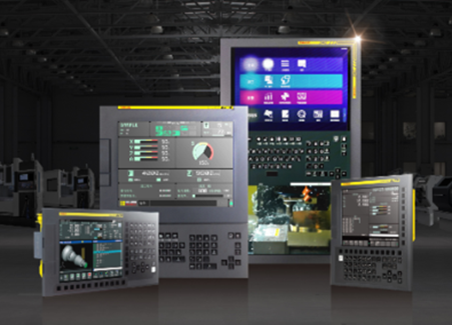

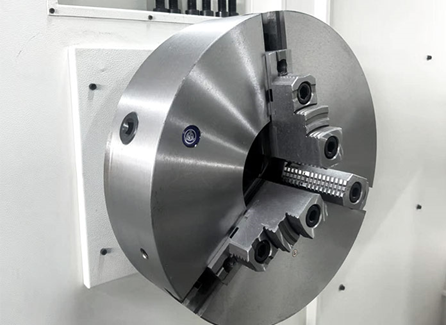

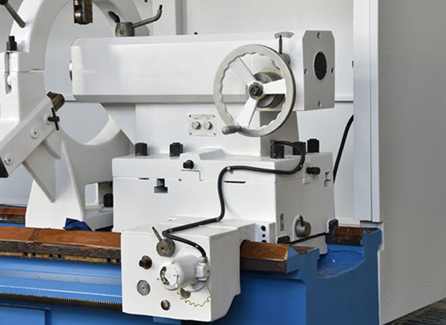

Typical configurations from Xinheng projects include GSK CNC systems for economical production, FANUC or Siemens options for higher automation requirements, quenched guideways, automatic lubrication, LED work light, coolant system, hydraulic chuck, manual or hydraulic tailstock and English operation documents for export customers.
FAQ
Which parameter should I check first?
Start with supported workpiece diameter, length and weight. Then confirm spindle bore, chuck type and required machining process.
Can Xinheng customize the machine?
Yes. Many catalog models can be customized by distance between centers, CNC system, spindle bore, chuck, tailstock, steady rest and voltage.
Where can I request a quotation?
Send your drawing and destination port through https://www.ayxhmt.cn/ for model selection and quotation.
